Application Architecture

Local Storage Integration

The useStorage hook integrates with the browser's localStorage api. It accepts a localStorage key as its only argument and returns a state variable and setter function for that state variable. The hook enables bidirectional data transfer between tabs via an event listener that is registered with the Web Storage api.

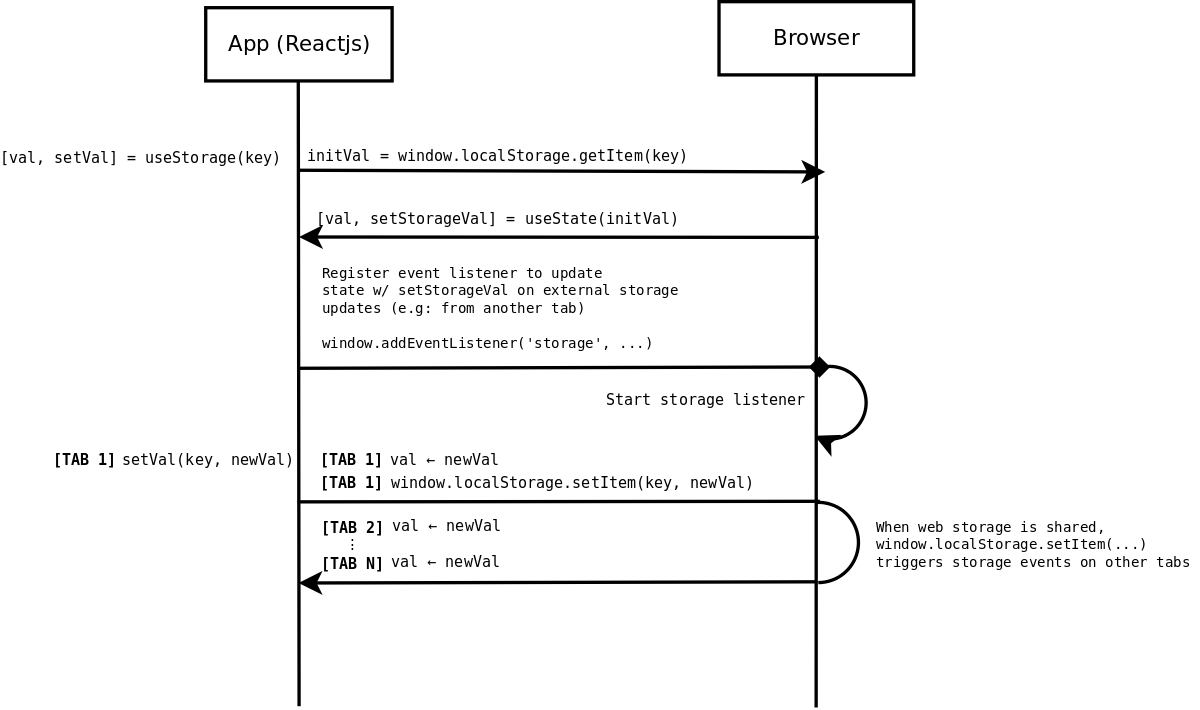

Sequence Diagram for useStorage

The useStorage hook currently lives in the AppContainer component. It can be relocated to a more general location should and if the need ever arise

Session Expiration

Session timeout state is communicated to the client in the HTTP(S) response headers. Every HTTP(S) response is intercepted to read the session expiration time before being passed into the rest of the application. A timeout date is computed from the intercepted HTTP(S) headers and is pushed into local storage, where it can be read using standard Web Storage apis or other utilities, such as useStorage.

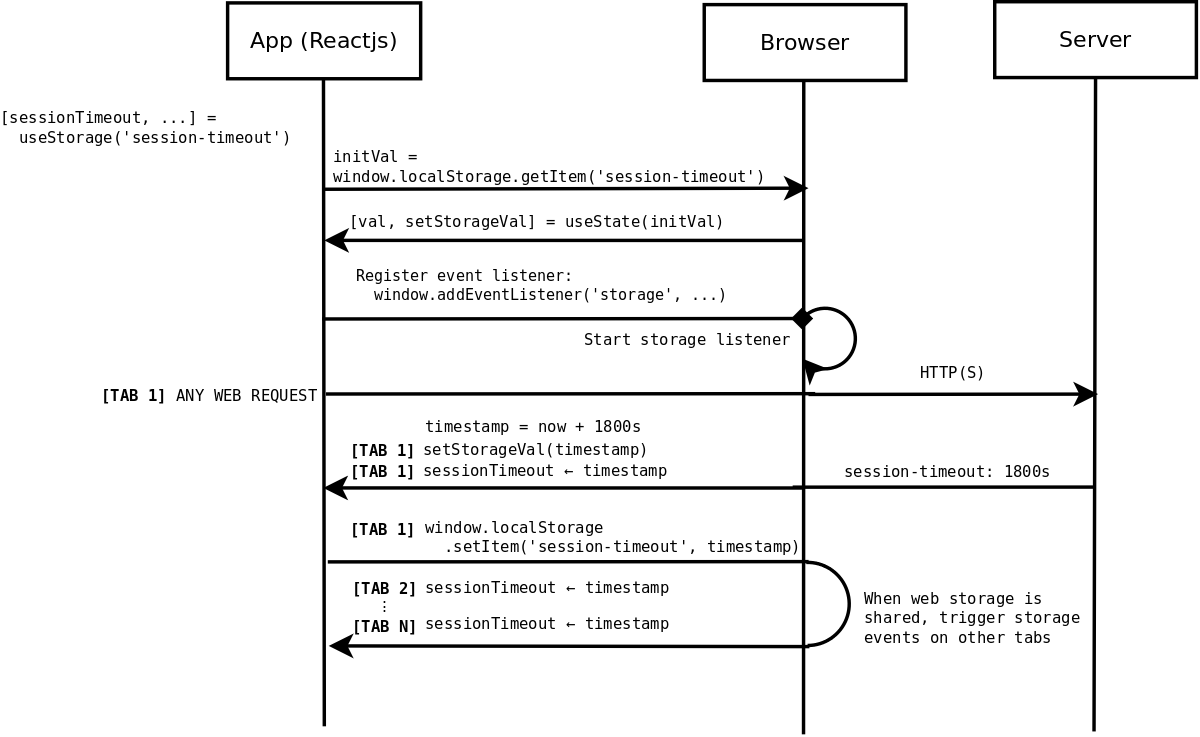

Sequence Diagram for session expiration
